GSA Advanced Golf Simulators
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
GSA offer both IR optical sensor or Camera tracking Systems
There are 4 basic options for GSA golf simulator ball and club tracking systems.
All systems come complete with dual system 3D golf simulation software
1. Club tracking sensor Mat/Pad only
2. Dual 3D camera ball tracking only
3. Sensor Mat/Pad with dual Cameras
4. Camera club and ball tracking
see Advice on purchasing a golf simulator
see GSA testimonials
PX-C
as above with
1. Black carpet solid panel enclosure

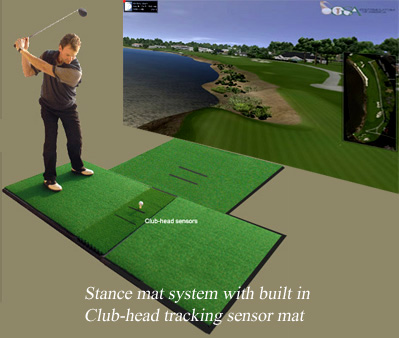

2. Stance mat system flooring
3. Dual Camera ball tracking
(ball speed, path and vertical launch angle)
4. Club tracking mat
(Club speed, path and face angle)
5. Impact screen
6. High end PC wit touch screen monitor
7. High-end projector
8. Full version GSA Golf software with 75 golf courses
9. Lamps and cables
$19,999
Optional extras
5th extra stance mat for ball roll when putting
Rough and sand fiber panels
Interior floor carpeting on areas outside of stance mats
PX-N
as above with
1. Net frame cage
2. Stance mat system flooring
3. Infra Red ball tracking 3D (launch angle, path and speed)
4. Club tracking mat
5. Impact screen
6. Full version GSA Golf software with 75 golf courses
7. Lamps and cables
$ 7,999
Advantages our systems offer compared to others in this price class:
1. More than 95 golf courses with every system
another 95 courses available
2. Up to 8 players can play in a single flight
3. Ability to play from other sufraces such as greens, sand and rough
i.e. you are not confined to play the shot from the same spot every time
4. No extra putting sensors required
5. True 3D camera ball tracking
6. Best value at lowest prices
The PX-C at just $19,999 represents the best value full scale simulator on the market
while the PX5 at $4999 is the best value 3D camera system at component level on the market
Shop around and you'll see. Most full scale systems start at $40,000 and more in this class.
| Product & Price Overview | |||
| Individual Components | € (Euro) | $ (USD) | |
| 1 | PX2 club tracking sensor mat (club path, speed and face angle - ProX and GSA full version 85 course software) |
1799
|
2699
|
| 2 | PX1 club tracking sensor mat (club path ,speed and face angle - ProX and GSA single course software) |
999
|
1499
|
| 3 | PX2 lite as PX2 but with just 10 GSA courses |
1599
|
2299
|
| 4 | cCam camera club tracking system (club speed, path and face angle - ProX 20 courses and GSA Golf 1 course software |
1799
|
2699
|
| 5 | ADX Club & ball tracking sensor mat including vertical launch angle |
2699
|
3999
|
| 6 | CX1 add-on vertical launch camera for PX2 club tracking mats |
1699
|
2499
|
| 7 | CX2 3D camera ball tracking system with full version software with 75 courses |
2699
|
3999
|
| 8 | PX5 3D camera ball tracking system , club tracking and full version software with 75 courses |
3399
|
4999
|
| 9 | BX add-on ball track 4ft wide for PX2 captures ball speed and path |
999
|
1499
|
| 10 | VX launch monitor with IR reflex sensors for vertical launch angle, ball path, speed and ball spin |
1399
|
1999
|
| 11 | MX mini ball track add-on for PX2 captures ball speed and path. Can also be used as stand-alone product |
999
|
1499
|
| 12 | SX ball spin and spin axis tilt detection laser system |
** 999
|
** 1499
|
| 13 | Sand, Rough, Fairway panels (each) |
279
|
359
|
| 14 | Custom complete Enclosure h 10' ft (2.98 m) w 15 ft w(4.60 m) d x 15 ft (4.60 m) ... | ||
| -- | with interior carpet panels - black |
4999
|
6999
|
| 16 | Computer - High Performance custom made, all software installed |
1469
|
1899
|
| 17 | Touch Screen monitor 19" |
730
|
950
|
| 18 | 3 Lamp track lighting system (for sensor mat / ball track / Camera) |
399
|
599
|
| 19 | Projection Impact Screen |
799
|
999
|
| 20 | Stance mat raised flooring (4 prepared FB stance mats 58 x 58) |
2299
|
2999
|
| 21 | High end Projector |
1299
|
1699
|
| 22 | GSA Golf Software Full license with 75 golf courses |
699
|
999
|
| 23 | ProX Software with 20 golf courses |
0
|
0
|
| 24 | GSA Software Single course license |
0
|
0
|
| 25 | E6 Software 15 golf courses |
1860
|
2800
|
| 26 | E6 Software 60 golf courses |
3400
|
5200
|
** System not available till 2012.
Club tracking systems - optical sensors
go to Camera page for camera club tracking

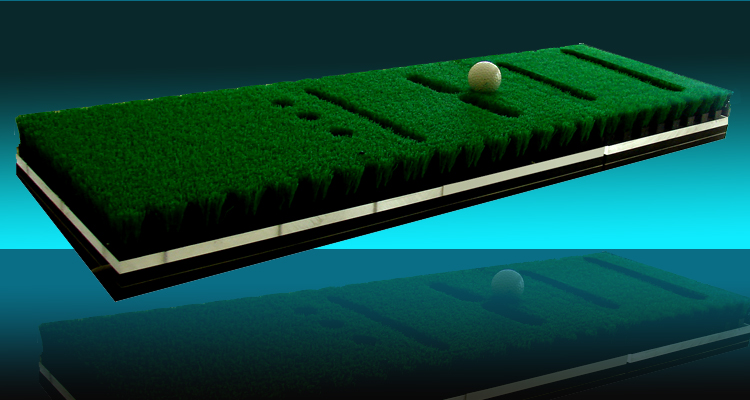

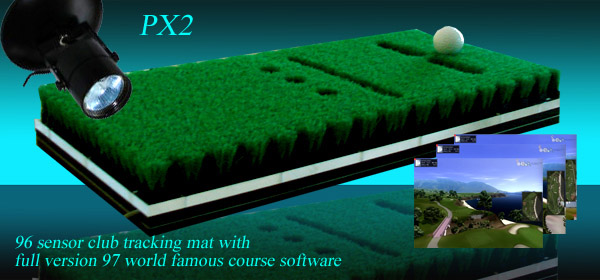

PX2 Sensor Mat with FiberBuilt synthetic long grass top panels
and GSA Golf full version software with 75 courses plus ProX software with 20 courses.

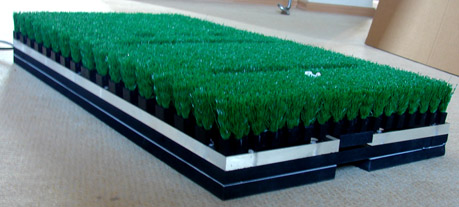

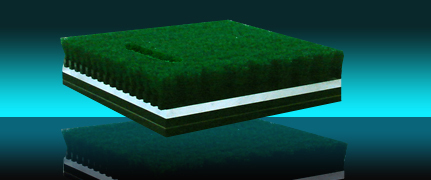

Club-head tracking sensor mat
Fiber Built Sensor Mat and Frame fully assembled with built-in electronics
-GSA Sensor Mats feature a massive solid acrylic glass 1/2 inch thick plate to protect the internal electronics.
The construction is so sturdy you can drive a 10 ton truck over it!
When you consider that the force of a club on the mat can be as high as 4000 pounds per square inch,
you'll appreciate the need for a very strongly constructed product that can withstand these forces if it is to last.
The GSA Pro Mat features FiberBuilt true feel grass mat panels.
Data captured
1. Club head velocity
2. Club head face angle at impact to ball
( degrees club-head open or closed at moment of impact in relation to club head path )
3. Club head path i.e. Square, in-to-out, out-to-in.
4. Horizontal ball position at impact on club face
Internal circuitry is built to the highest industrial standards using the latest robot assembly methods.
96 sensors, 2 * 16 bit counters, Serial I/O, Data bus expansion port
Maximum measurable club speed : 270 mph at +/- 0.5 mph accuracy
Minimum measurable club speed : 1.15 mph +/- 0.0001 mph accuracy
Speed accuracy at 100 mph : +/- 0.065 mph
Club-face angle at impact to ball : +/- 0.0001°
Maximum measurable Club Path : 24° in-to-out 29° out-to-in +/- 0.65°
Mat dimensions: H = 7cm - 2 3/4" W = 30 cm - 12" L 61 cm - 24"
Advanced mathmatical algorithms in the software calculate (not measure) ball spin and spin axis tilt
from the club-face angle, club path, loft and velocity which determines the ball flight curve
ie. draws, fades, hooks and slices.
E6 software upgardes available
USB connection to PC
Example major advantages compared to other optical Sensor mat/pad systems in this price category:
1. Extremely robust large hitting pad/mat featuring 1/2 inch acryl glass plate and soft FiberBuilt top panels.-
2. No need to stick reflective tape to your clubs - you can use your own clubs as they are.-
-3. Two fantastic true 3D golf simulation software packages with 85 golf courses included
4. Extensive upgrades available including professional 3D camera ball tracking. -
5. GSA sensor mats feature 96! on-board optical sensors.
That's up to 5 times more than on our competitor's pads
Mat dimensions: H = 5.5cm - 2 1/4" W = 30 cm - 12" L 61 cm - 24" Weight 7 lbs
PX2 with 75 GSA golf courses - latest 2011 system software with free updates - and ProX software with 20 golf courses
Price just $ 2,699.00 Product No. #100212
Euro Price just € 1,799.00
PX2 Lite as above but with 10 GSA golf courses instead of 75 and without acrylic glass plate
Includes ProX software with 20 golf courses
Price just $ 2,299.00 Product No. #10021
Euro Price just € 1,599.00
PX1 as above but with 1 GSA golf course and without acrylic glass plate
Includes ProX software with 20 golf courses
Price just $ 1,499.00 Product No. #100211
Euro Price just € 999.00
Optional extras for PX2 and PX1

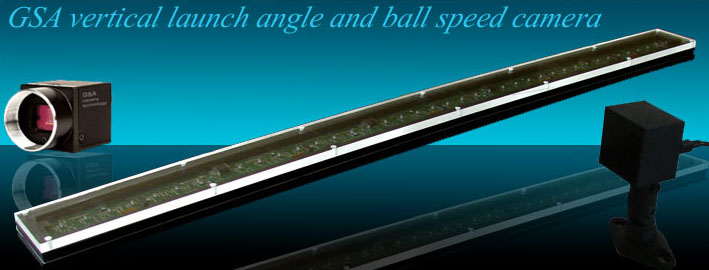

CX1 add on vertical launch angle camera package for PX2 club tracking sensor mats
Data captured: Ball speed and vertical launch angle
System includes:
1. Vertical launch angle and ball speed camera with camera mount, cables and lens
2. Optical sensor camera trigger in solid acrylic casing!
The system is not just vertical launch angle detection:
System adds the following features to the PX2 club tracking mat.
1. Vertical ball launch angle.
2. True Ball speed.
3. Putting.
4. Ability to play ball from other surfaces such as rough, sand and greens.
Price $ 2,499.00 Product No. #100716
Euro Price € 1,699.00

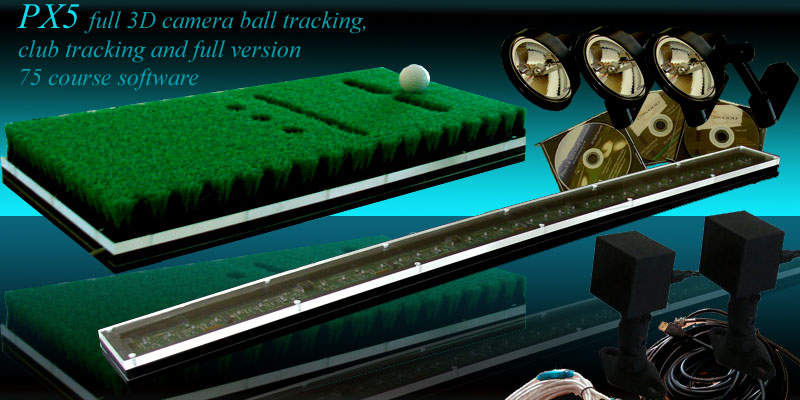

PX5 professional system with full club tracking and 3D dual camera ball tracking
our top of the line and most popular professional system at an unbeatable price.
System includes:
1. Vcam Vertical launch angle and ball speed camera
2. Hcam Ball path camera
Note: Our cameras are professional high speed machine vision cameras and not just cheap simple web cams.
3. TX Optical sensor camera trigger in solid acrylic casing
4. PX2 club tracking sensor mat
5. GSA full version software with 75 golf courses plus 20 ProX courses
6. 3 lamp halogen track lighting system
7. Roll of wall carpeting What's this?
Support experience has shown that the biggest issue with camera systems - when customers install systems themselves - is reflection from the wall and floor covering in the field of view of the cameras.
We thus decided to supply a roll of our low reflective wall covering carpet to resolve this issue should it occur.
Price $ 4,999.00 Product No. #100615
Euro Price € 3,399.00
The GSA PX5 is the world's first true 3D camera system at anywhere near this price.
Important advantages with this system compared to others on the market in this price segment:
System does not confine you to hit the ball from the same spot so you can play from other simulated surfaces such as rough, sand and greens.
Especially putting and chipping is a pleasure.
Our camera ball tracking system is true 3D and captures all three X,Y and Z parameters while others are just 2D and miss the Z component.
X is left/right direction = ball path, Y the vertical up/down or ball height = vertical launch angle and Z is the depth distance = ball speed.
Optional extra for PX2, MX or FX
Fairway extension panel
Price $ 359.00
Euro Price €289.00
CX2 professional 3D dual camera ball tracking system
package includes
1. Vcam Vertical launch angle and ball speed camera
2. Hcam Ball path camera
Note: Our cameras are professional high speed machine vision cameras and not just cheap simple web cams.
3. TX Optical sensor camera trigger in solid acrylic casing
4. GSA full version software with 75 golf courses plus 20 ProX courses
5. 3 lamp halogen track lighting system
Price $ 3,999.00 Product No. #100712
Euro Price € 2,699.00
Line Scan Camera Trigger
An alternative to the TX optical sensor camera trigger is to use a special third camera known as a line scan camera.
The GSA line scan camera operates at over 3000 scans per second and generates a trigger signal to the ball tracking cameras as soon as a golf ball enters it's field of view.
See camera section for pricing.
CX1
add on vertical launch angle camera package for PX2 club tracking sensor mats
or use as a stand alone sytem
package includes
1. Vertical launch angle and ball speed camera
2. Optical sensor camera trigger in solid acrylic casing
Price $ 2,499.00 Product No. #100716
Euro Price € 1,699.00
New! ADX sensor mat with vertical launch angle detection
comes complete with GSA full version software featuring 75 golf courses
ADX sensor mat
System captures club path, face angle, club speed, ball path, ball vertical launch angle and ball speed.
USB connection
features super high speed ADC (Analog Digital Converter) capable of capturing 800 samples of a ball travelling at 170 mph.
Price $ 3,999.00
Euro Price € 2,850.00
VX-2
IR ball tracking for
vertical launch angle plus ball speed plus ball path and measured ball spin in rpm
Coming soon!
The VX-2 Vertical Launch Angle sensor uses a triangulation IR Beam method of measuring ball vertical launch angle.
The sensor's high speed ADC (Analog Digital Converter) is capable of capturing 800 samples of a ball travelling at 170 mph.
The device is embedded in a fairway extension panel of a GSA sensor mat and features a USB connector to the PC.
IR reflex technology.
The VX-2 Vertical Launch angle sensor array uses a high speed 16 channel ADC (Analog Digital Converter) to additionally capture ball speed and ball path as well as the launch angle.
You can use this unit alone to play both the ProX and the GSA Golf software in a golf simulator.
Price $ 2,999.00 Product No. #10071
Euro Price € 1,999.00
Production date is January 2012.
Attention OEMs!
Board level versions also available.
SX ball spin and spin axis tilt laser detection system
Coming soon!
Both ball spin in RPM as well as spin axis tilt in degrees is captured using IR lasers and sensors.
System uses a super high speed ADC (Analog Digital Converter) capable of capturing 800 samples of a ball travelling at 170 mph from multiple angles.
Player is not required to use marked or special balls.
Production date is January 2012.
Current price estimation $1499./Euro 999
Extra 3rd Fairway Grass FiberBuilt panel on frame for sensor mat Product No. #111
(the sensor mat normally consists of two FiberBuilt panels)
Price $ 359.00
Euro Price €289.00Extra High-Rough Grass FiberBuilt panel on frame for sensor mat Product No. #112
Price $ 359.00
Euro Price €289.00Extra Sand FiberBuilt panel on frame for sensor mat Product No. #113
Price $ 359.00

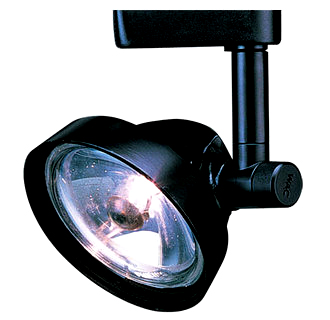

Euro Price €289.00Halogen 3 Lamp track system
All GSA sensor and camera systems require an overhead mounted light source to operate.
1 8° 50 watt lamp is required for the sensor mat (type Sylvania 50AR111/SP8) 12 v.
1 25° 75 watt lamp for ball tracks and camera sensor trigger arrays. (type Sylvania 75AR111/FL25) 12 v.
1 45° 75 watt lamp for additional camera lighting. (type Sylvania 75AR111/WFL45) 12 v.
Fixture: WAC HHT-936L-BK
Price $599.00
Euro Price € 399.00
US $ (click below to view cart in US $)
Euro (click below to view cart in Euros)
Golf Simulator OEMs!
All our products are available with SDKs to interface with your systems.
Go to our Golf Simulator OEM page here for more information.
Ideas page:
© GSA LLC / GGS Systems. All Rights Reserved.
All prices and specifications subject to change
